3BD884MM, Integrated Design Hood, BALAY

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE 3BD884MM
• USP_MAIN
• ART_NUM 3BD884MM
• COL_BODY_HOODS Negro mate
• MAT_BODY Coil coated steel
• COL_CHIMNEY noData
• MAT_CHIMNEY noData
• TYPOLOGY noData
• CONTROL_TYPE Mecánico
• CONSTR_TYPE Integrable
• INST_TYPE Integrable
• CONTROL_SETTING Botón
• FRONT_PANEL_OPTIONS N/A
• MOTOR_LOCATION Motor integrado en el cuerpo de la campana
• OPERATING_MODE Convertible
• CONNECTION 100
• CURRENT noData
• VOLTAGE 220-240
• FREQUENCY 50
• CERTIFICATES
• CORD_LGTH 130
• PLUG_TYPE Schuko con conexión a tierra
• HEIGHT_WITHOUT_CHIMNEY 60
• HEIGHT 60
• WIDTH 798
• DEPTH 298
• HEIGHT_PACKED 500
• WIDTH_PACKED 580
• DEPTH_PACKED 1020
• HEIGHT_NICHE_SIZE_MIN noData
• HEIGHT_NICHE_SIZE_MAX noData
• WIDTH_NICHE_SIZE_MIN 760
• WIDTH_NICHE_SIZE_MAX 760
• DEPTH_NICHE_SIZE 300
• WEIGHT_NET 7.8
• WEIGHT_GROSS 13.2
• AIR_EXHAUST_AVAILABLE Si
• CHIMNEY_HEIGHT_EXHAUST_MAX noData
• CHIMNEY_HEIGHT_EXHAUST_MIN noData
• CHIMNEY_HEIGHT_RECIRC_MAX noData
• CHIMNEY_HEIGHT_RECIRC_MIN noData
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE Si
• ENERGY_CLASS_2010 D
• ENERGY_ANNUAL 56.1
• FLUID_DYNAMIC_EFFICIENCY 9.4
• FLUID_DYNAMIC_CLASS E
• LIGHT_EFFICIENCY 46.8
• LIGHT_CLASS A
• GREASE_FILTER_EFFICIENCY 89.3
• GREASE_FILTER_CLASS B
• AIR_FLOW_MAX 384
• AIR_FLOW_MIN 174
• AIR_FLOW_BOOST noData
• SOUND_POWER_MAX 65
• SOUND_POWER_MIN 49
• SOUND_POWER_BOOST noData
• POWER_CONS_STANDBY noData
• POWER_OFF_MODE_2010 noData
• NOISE 65
• NOISE_BOOST noData
• ECO_LABEL
• MANUAL_CONTROL_DEVICES Push buttons
• AUTOMATIC_CONTROL_DEVICES noData
• REMOTE_CONTROL No
• MOTOR_NUMBER noData
• TOTAL_POWER_MOTORS 90
• MAX_OUTPUT_EXTRACTION 384
• BOOST_OUTPUT_EXTRACTION noData
• MAX_OUTPUT_RECIRCULATION 291
• BOOST_OUTPUT_RECIRCULATION noData
• LIGHT_CNT_TYPE Encendido/Apagado
• LIGHTS_NUMBER 2
• LAMPS_TOTAL_POWER noData
• LUMINANCE_TOTAL 290
• GREASE_FILTER_MAT Acero inoxidable lavable
• AIR_OUTLET_DIAMETER 120 / 150
• GREASE_FILTER_TYPE noData
• NO_RETURN_FLAP No
• ODOUR_FILTER No
• ACCESSORIES_INCL noData
• ACCESSORIES
• SPEED_SETTINGS 3
• LAMPS_TYPE LED

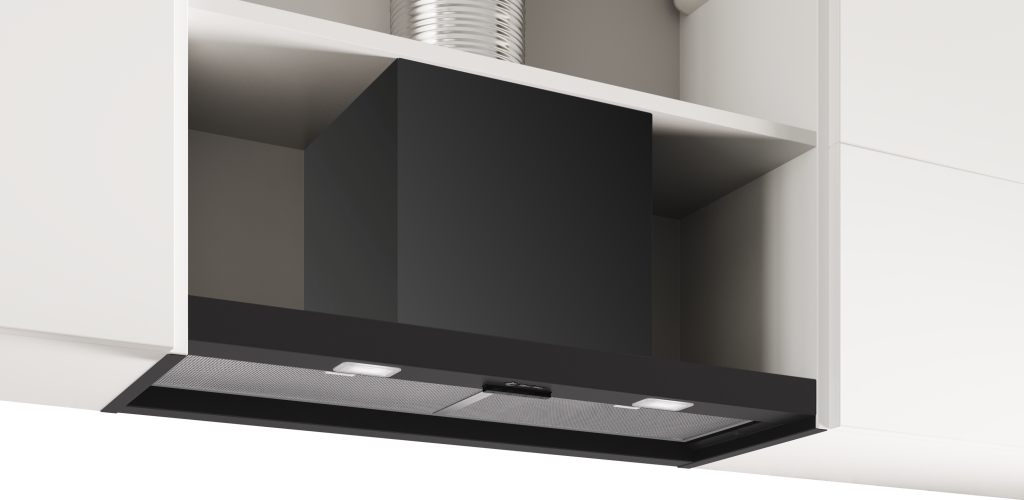

• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/26818070_3BD884MM_STP_def.jpg
