LJ98BET60, Campana decorativa integrable, SIEMENS

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE LJ98BET60
• USP_MAIN
• ART_NUM LJ98BET60
• COL_BODY_HOODS Negro mate
• MAT_BODY Coil coated steel
• COL_CHIMNEY noData
• MAT_CHIMNEY noData
• TYPOLOGY noData
• CONTROL_TYPE Electrónica
• CONSTR_TYPE Integrable
• INST_TYPE Integrable
• CONTROL_SETTING Control táctil;Por app
• FRONT_PANEL_OPTIONS N/A
• MOTOR_LOCATION Motor integrado en el cuerpo de la campana
• OPERATING_MODE Convertible
• CONNECTION 200
• CURRENT noData
• VOLTAGE 220-240
• FREQUENCY 50; 60
• CERTIFICATES
• CORD_LGTH 130
• PLUG_TYPE Schuko con conexión a tierra
• HEIGHT_WITHOUT_CHIMNEY 60
• HEIGHT 60
• WIDTH 898
• DEPTH 298
• HEIGHT_PACKED 500
• WIDTH_PACKED 580
• DEPTH_PACKED 1020
• HEIGHT_NICHE_SIZE_MIN noData
• HEIGHT_NICHE_SIZE_MAX noData
• WIDTH_NICHE_SIZE_MIN 860
• WIDTH_NICHE_SIZE_MAX 860
• DEPTH_NICHE_SIZE 300
• WEIGHT_NET 10.7
• WEIGHT_GROSS 16.1
• AIR_EXHAUST_AVAILABLE Si
• CHIMNEY_HEIGHT_EXHAUST_MAX noData
• CHIMNEY_HEIGHT_EXHAUST_MIN noData
• CHIMNEY_HEIGHT_RECIRC_MAX noData
• CHIMNEY_HEIGHT_RECIRC_MIN noData
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE Si
• ENERGY_CLASS_2010 A+
• ENERGY_ANNUAL 35.3
• FLUID_DYNAMIC_EFFICIENCY 36.8
• FLUID_DYNAMIC_CLASS A
• LIGHT_EFFICIENCY 57.5
• LIGHT_CLASS A
• GREASE_FILTER_EFFICIENCY 85.3
• GREASE_FILTER_CLASS B
• AIR_FLOW_MAX 427
• AIR_FLOW_MIN 241
• AIR_FLOW_BOOST 851
• SOUND_POWER_MAX 57
• SOUND_POWER_MIN 42
• SOUND_POWER_BOOST 73
• POWER_CONS_STANDBY 0.18
• POWER_OFF_MODE_2010 0.18
• NOISE 57
• NOISE_BOOST 73
• ECO_LABEL
• MANUAL_CONTROL_DEVICES touch control
• AUTOMATIC_CONTROL_DEVICES Sensormatic
• REMOTE_CONTROL No
• MOTOR_NUMBER noData
• TOTAL_POWER_MOTORS 190
• MAX_OUTPUT_EXTRACTION 427
• BOOST_OUTPUT_EXTRACTION 851
• MAX_OUTPUT_RECIRCULATION 414
• BOOST_OUTPUT_RECIRCULATION 656.0
• LIGHT_CNT_TYPE Continuo
• LIGHTS_NUMBER 2
• LAMPS_TOTAL_POWER noData
• LUMINANCE_TOTAL 437
• GREASE_FILTER_MAT Acero inoxidable lavable
• AIR_OUTLET_DIAMETER 120 / 150
• GREASE_FILTER_TYPE noData
• NO_RETURN_FLAP No
• ODOUR_FILTER No
• ACCESSORIES_INCL noData
• ACCESSORIES
• SPEED_SETTINGS 3 niveles + 2 intensivos
• LAMPS_TYPE LED

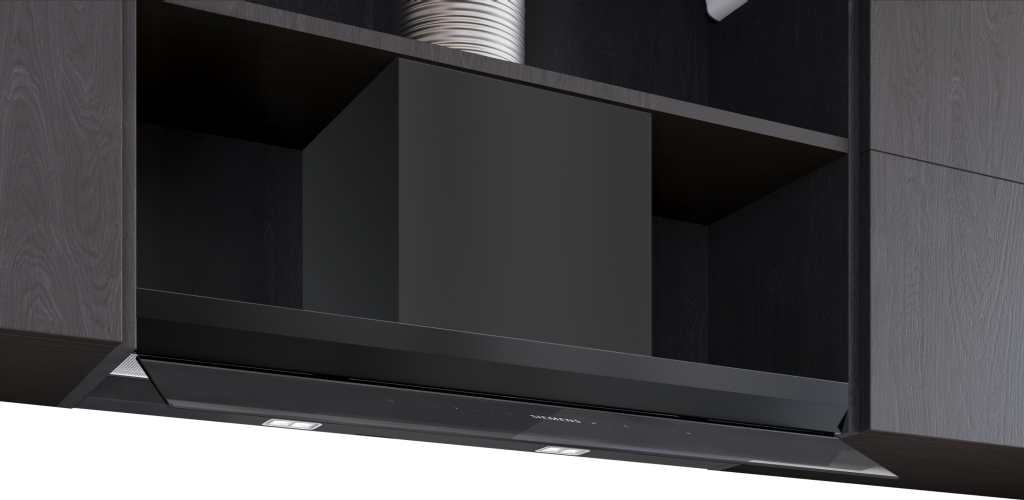

• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/26637827_LJ98BET60_STP_def.jpg
• MEASURE_IMAGE
• PANEL_IMAGE
• ADD_IMAGE1_ID https://media3.bsh-group.com/Product_Shots/3000x3000/27356341_LJ98BET60_PGA1_def.jpg
• ADD_IMAGE2_ID https://media3.bsh-group.com/Product_Shots/3000x3000/27356343_LJ98BET60_PGA2_def.jpg
• ADD_IMAGE3_ID https://media3.bsh-group.com/Product_Shots/3000x3000/27356344_LJ98BET60_PGA3_def.jpg
• ADD_IMAGE4_ID https://media3.bsh-group.com/Product_Shots/3000x3000/27356345_LJ98BET60_PGA4_def.jpg
• ADD_IMAGE5_ID https://media3.bsh-group.com/Product_Shots/3000x3000/27356339_LJ98BET60_PGA5_def.jpg
• ADD_IMAGE6_ID https://media3.bsh-group.com/Product_Shots/3000x3000/27288984_LJ98BET60_PGA6_def.jpg
• ADD_IMAGE7_ID https://media3.bsh-group.com/Product_Shots/3000x3000/27506194_LJ98BET60_PGA7_def.jpg
• ENERGY_LABEL https://media3.bsh-group.com/Documents/energylabel/es-ES/LJ98BET60.pdf
• PRODUCT_FICHE https://media3.bsh-group.com/Documents/eudatasheet/es-ES/LJ98BET60.pdf
• USP_1 Integración perfecta: Instalación enrasada prácticamente invisible en el mueble superior.
• USP_2 motor iQdrive: Potente, silencioso y duradero.
• USP_3 Acabado negro mate: Acabado moderno que reduce las marcas de huellas.
• USP_4 Máximo almacenamiento: Su diseño interior permite almacenar hasta 10 kg de peso a cada lado.
• USP_5 Extracción automática inteligente: extracción según la calidad del aire y la actividad de la placa.
