3BC897GX, wall-mounted cooker hood, box design, BALAY

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE 3BC897GX
• USP_MAIN
• ART_NUM 3BC897GX
• COL_BODY_HOODS noData
• MAT_BODY Coil coated steel
• COL_CHIMNEY Inox-look
• MAT_CHIMNEY noData
• TYPOLOGY noData
• CONTROL_TYPE Electrónica
• CONSTR_TYPE Integrable
• INST_TYPE Montaje en pared
• CONTROL_SETTING Control táctil;Por app
• FRONT_PANEL_OPTIONS N/A
• MOTOR_LOCATION Motor integrado en la chimenea de la campana
• OPERATING_MODE Convertible
• CONNECTION 115
• CURRENT noData
• VOLTAGE 220-240
• FREQUENCY 50; 60
• CERTIFICATES
• CORD_LGTH 130
• PLUG_TYPE Schuko con conexión a tierra
• HEIGHT_WITHOUT_CHIMNEY 60
• HEIGHT 60
• WIDTH 898
• DEPTH 500
• HEIGHT_PACKED 700
• WIDTH_PACKED 580
• DEPTH_PACKED 1020
• HEIGHT_NICHE_SIZE_MIN noData
• HEIGHT_NICHE_SIZE_MAX noData
• WIDTH_NICHE_SIZE_MIN noData
• WIDTH_NICHE_SIZE_MAX noData
• DEPTH_NICHE_SIZE noData
• WEIGHT_NET 10.8
• WEIGHT_GROSS 17.4
• AIR_EXHAUST_AVAILABLE Si
• CHIMNEY_HEIGHT_EXHAUST_MAX noData
• CHIMNEY_HEIGHT_EXHAUST_MIN noData
• CHIMNEY_HEIGHT_RECIRC_MAX noData
• CHIMNEY_HEIGHT_RECIRC_MIN noData
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE Si
• ENERGY_CLASS_2010 noData
• ENERGY_ANNUAL 24.5
• FLUID_DYNAMIC_EFFICIENCY 38.3
• FLUID_DYNAMIC_CLASS A
• LIGHT_EFFICIENCY 64.0
• LIGHT_CLASS A
• GREASE_FILTER_EFFICIENCY 87.4
• GREASE_FILTER_CLASS B
• AIR_FLOW_MAX 399
• AIR_FLOW_MIN 242
• AIR_FLOW_BOOST 699
• SOUND_POWER_MAX 56
• SOUND_POWER_MIN 43
• SOUND_POWER_BOOST 68
• POWER_CONS_STANDBY 0.16
• POWER_OFF_MODE_2010 0.16
• NOISE 56
• NOISE_BOOST 68
• ECO_LABEL
• MANUAL_CONTROL_DEVICES touch control
• AUTOMATIC_CONTROL_DEVICES noData
• REMOTE_CONTROL No
• MOTOR_NUMBER noData
• TOTAL_POWER_MOTORS 105
• MAX_OUTPUT_EXTRACTION 399
• BOOST_OUTPUT_EXTRACTION 699
• MAX_OUTPUT_RECIRCULATION 410
• BOOST_OUTPUT_RECIRCULATION 677.0
• LIGHT_CNT_TYPE Continuo
• LIGHTS_NUMBER 2
• LAMPS_TOTAL_POWER noData
• LUMINANCE_TOTAL 461
• GREASE_FILTER_MAT Acero inoxidable lavable
• AIR_OUTLET_DIAMETER 120 / 150
• GREASE_FILTER_TYPE noData
• NO_RETURN_FLAP No
• ODOUR_FILTER No
• ACCESSORIES_INCL noData
• ACCESSORIES
• SPEED_SETTINGS noData
• LAMPS_TYPE LED

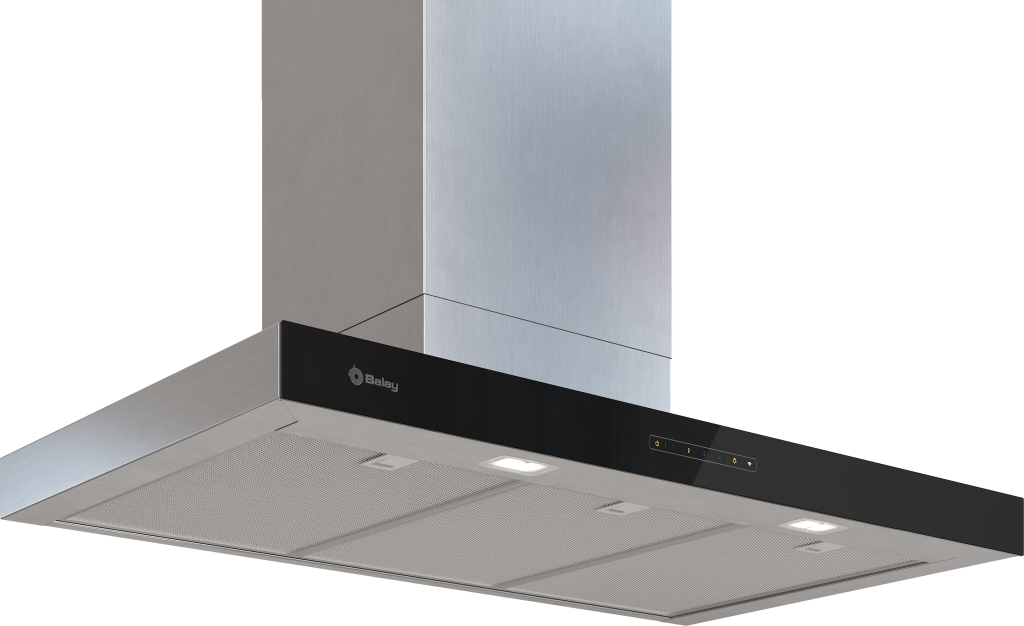

• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/26848802_3BC897GX_STP_def.jpg
